Product Summary
The 200CNQ035 is a schottky rectifier. It has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications of the 200CNQ035 are in high current switching power supplies, plating power supplies, UPS systems, converters, free-wheeling diodes, welding, and reverse battery protection.
Parametrics
200CNQ035 absolute maximum ratings: (1)IF(AV) Rectangular waveform: 200 A; (2)VRRM range: 35 to 45 V; (3)IFSM @ tp = 5 μs sine: 26,000 A; (4)VF @ 100Apk, TJ=125°C(per leg): 0.49 V; (5)TJ range: - 55 to 150 °C.
Features
200CNQ035 features: (1)150 °C TJ operation; (2)Center tap module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.

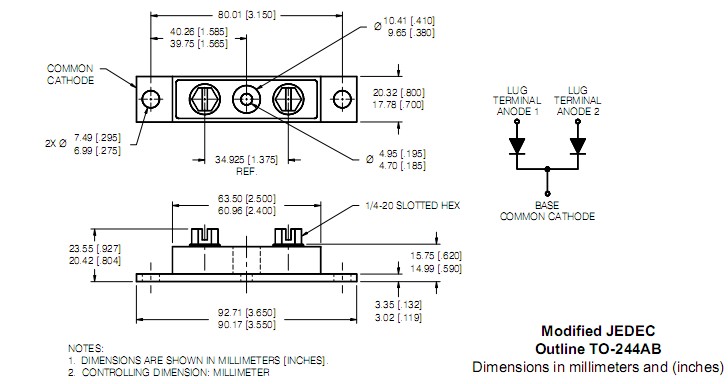

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

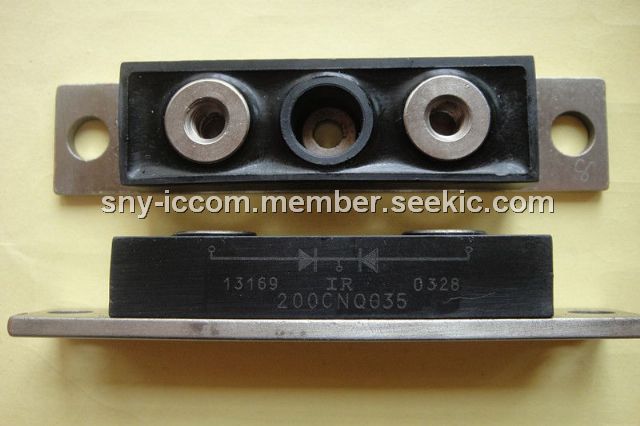

200CNQ035 |
DIODE SCHOTTKY 35V 100A TO-244AB |
Data Sheet |
Negotiable |
|
||||||||||||||
