Product Summary

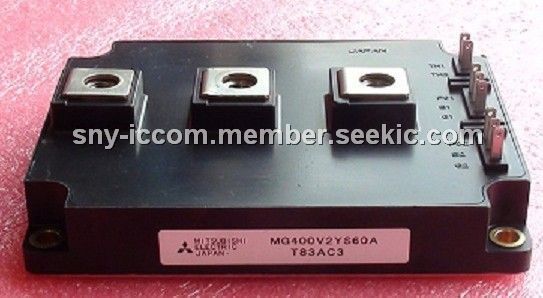

The MG400V2YS60A is a silicon N channel IGBT module. Its applications include high power switch, motor control.
Parametrics
MG400V2YS60A absolute maximum rating: (1)Collector-emitter voltage: 1700V; (2)Gate-emitter voltage: ±20V; (3)Collector current: 400A; (4)Forward current: 400A; (5)Collector power dissipation: 4300W; (6)Junction temperature: 150℃; (7)Isolation voltage: 4000V.
Features
MG400V2YS60A features: (1)The electrodes are isolated from case; (2)Enhancement-mode; (3)Thermal output terminal.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MG400V2YS60A |
|
IGBT MOD CMPCT DUAL 1700V 400A |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
MG400J2YS60A |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
MG400J2YS61A |
|
IGBT MOD CMPCT DUAL 600V 400A |
Data Sheet |
Negotiable |
|
||||||
|
MG400Q2YS60A |
|
IGBT MOD CMPCT DUAL 1200V 400A |
Data Sheet |
Negotiable |
|
||||||
|
MG400V2YS60A |
|
IGBT MOD CMPCT DUAL 1700V 400A |
Data Sheet |
|
|
||||||
|
MG400V1US51A |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
MG400Q1US65H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
