Product Summary
The 6MBP25RA120 is an IGBT module.
Parametrics
6MBP25RA120 absolute maximum ratings: (1)DC bus voltage: 900V; (2)DC bus voltage(surge): 1000V; (3)DC bus voltage: 800V; (4)Collector-emitter voltage: 1200V; (5)Collector current: 25A; (6)Junction temperature: 150℃.
Features
6MBP25RA120 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)compatible with existing IPM-N series packages; (4)High performance and high reliability IGBT with overheating protection; (5)Higher reliability because of a big decrease in number of parts in built-in control circuit.

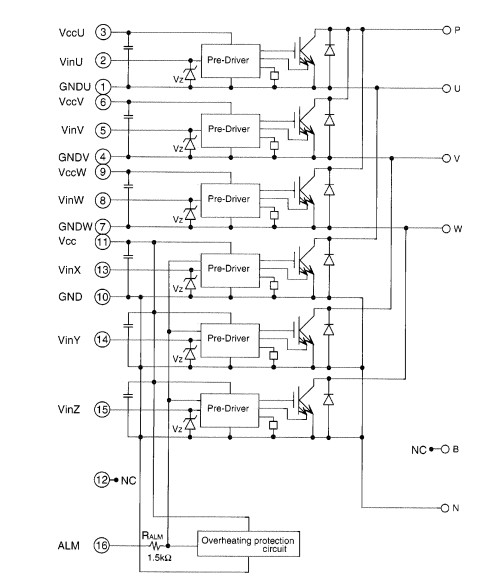

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 6MBP25RA120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
