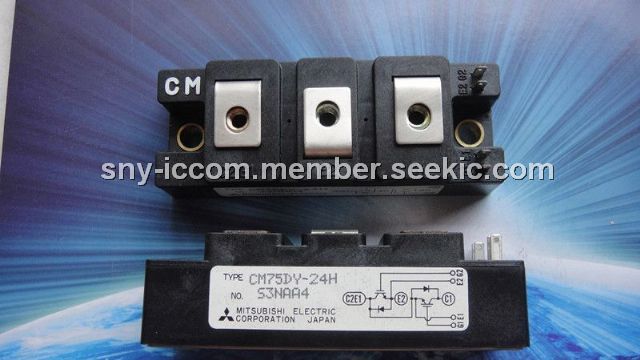

CM75DY-24H

Mitsubishi igbt modules, Low Drive Power, High Frequency Operation, 1200 Volts Collector-Emitter Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $60.00~80.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $60.00~80.00

PartNumber:: CM75DY-24H

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. peng's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-11

From Other Seller

Part Number:CM75DY-24H
US $60.00 - 80.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CM75DY-24H Mitsubishi IGBT Module is designed for use in switching applications. Each module consists of two IGBTs in a half bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components of CM75DY-24H and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

CM75DY-24H absolute maximum ratings: (1)Junction Temperature Tj: –40 to 150 ℃; (2)Storage Temperature Tstg: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 75 Amperes; (6)Peak Collector Current ICM: 150* Amperes; (7)Emitter Current** (TC = 25℃) IE: 75 Amperes; (8)Peak Emitter Current** IEM: 150* Amperes; (9)Maximum Collector Dissipation (TC = 25℃) Pc: 600 Watts; (10)Mounting Torque, M5 Main Terminal: 1.47 ~ 1.96 N · m; (11)Mounting Torque, M6 Mounting: 1.96 ~ 2.94 N · m; (12)Weight: 190 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.

Features

CM75DY-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
