Product Summary

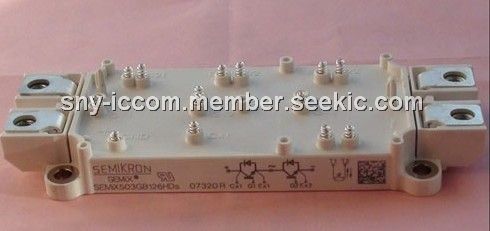

The SEMIX503GB126HDs is a trench IGBT module. Its applications include ac invertr drives, UPS, electronic welding.
Parametrics
SEMIX503GB126HDs absolute maximum ratings: (1)VCES: 1200V; (2)IC: 466A; (3)ICRM: 600A; (4)VGES: -20 to 20V; (5)Tj: -40 to 150℃.
Features
SEMIX503GB126HDs features: (1)homogeneous Si; (2)trenchgate technology; (3)VCE with positive temperature coefficient; (4)high short circuit capability; (5)UL recognised No. E63532.
Diagrams
 |
