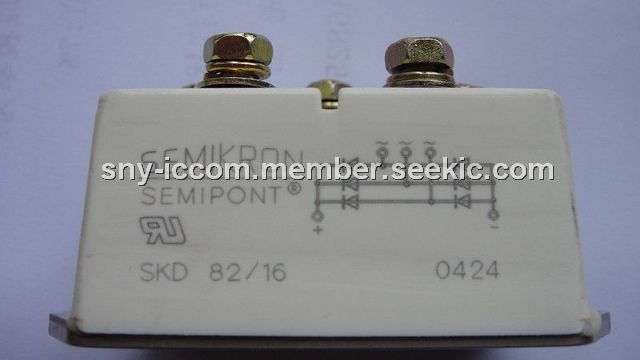

Product Summary

The SKD82-16 is a Power Bridge Rectifier. Typical Applications of the SKD82-16 are Three phase rectifiers for power supplies, Input rectifiers for variable frequency drives, Rectifiers for DC motor field supplies, Battery charger rectifiers.

Parametrics

SKD82-16 absolute maximum ratings: (1)VRSM: 1600 V; (2)VRRM,VDRM: 1600V; (3)ID TC=110℃: 80A; (4)vF Tvj = 25 ℃; lF = 150 A: max. 1.6 V; (5)V(TO) Tvj = 150 ℃: max. 0.85 V; (6)rT Tvj = 150 ℃: max. 5 mil; (7)IRD TVj = 25 ℃; VDD = VDRM; VRD = VRRM: max. 0.5 mA.

Features

SKD82-16 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800 V; (4)High surge current; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognized, file no. E 63 532.

Diagrams

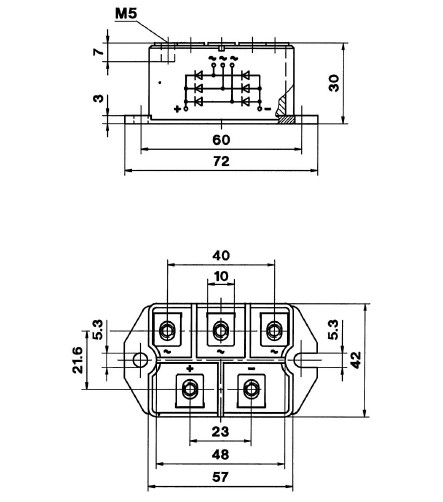

SKD82-16 dimension
