Product Summary

The SKM145GB176D is a trench IGBT module. Its applications include ac inverter drives mains 575 to 750V ac, public transport systems.

Parametrics

SKM145GB176D absolute maximum ratings: (1)VCES: 1700V; (2)IC: 160A; (3)ICRM: 200A; (4)VGES: ±20V; (5)IF: 140A; (6)IFSM: 1400A.

Features

SKM145GB176D features: (1)homogeneous Si; (2)trench technology; (3)VCE with positive temperature coefficient; (4)high short circuit capability.

Diagrams

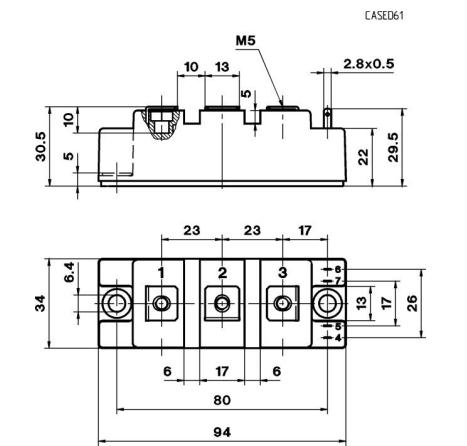

SKM145GB176D diagram
