Product Summary

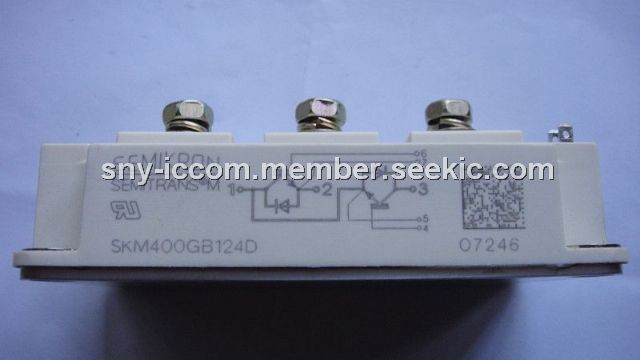

The SKM400GB124D is a low loss IGBT module. The typical applicatiosn of the device include switching, inverter drives and UPS.
Parametrics
SKM400GB124D absolute maximum ratings: (1)IGBT, VCE: 1200V; IC: 570(400)A when Tc=25(80)℃; ICRM: 600A when tp=1ms; VGES: ±20V; Tvi, (Tstg): -40 to 150(125)℃ when Toperation≤Tstg; (2)inverse diode, IF: 390(260)A when Tc=25(80)℃; IFRM: 600A when tp=1ms; IFSM: 2900A when tp=10ms, sin, Tj=150℃; (3)freewheeling diode, IF: 390(260)A when Tc=25(80)℃; IFRM: 600A when tp=1ms; IFSM: 2900A when tp=10ms, sin, Tj=150℃.
Features
SKM400GB124D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si-structure (NPT-no punch-through IGBT); (3)low inductrance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6ICNOM; (6)latch-up free; (7)fast and soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology without hard mould; (9)large clearance and creepage distance.
Diagrams
 |
