Product Summary

The CM200DY-24H is an IGBT module. Its applications include AC motor control, motion/servo control, UPS, welding power supplies.

Parametrics

CM200DY-24H absolute maximum ratings: (1)Junction temperature: -40 to 125℃; (2)Storage temperature: -40 to 125℃; (3)Collector-emitter voltage: 1200V; (4)Gate-emitter voltage: ±20V; (5)Peak collector current: 400A; (6)Collector dissipation: 1500W.

Features

CM200DY-24H features: (1)low drive power; (2)low VCE; (3)Discrete super-fast recovery free-wheel diode; (4)high frequency operation; (5)Isolation baseplate for easy heat sinking.

Diagrams

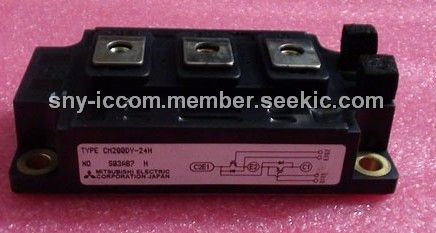

CM200DY-24H diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM200DY-24H
CM200DY-24H


IGBT MOD DUAL 1200V 200A H SER

Data Sheet

Negotiable
