Product Summary

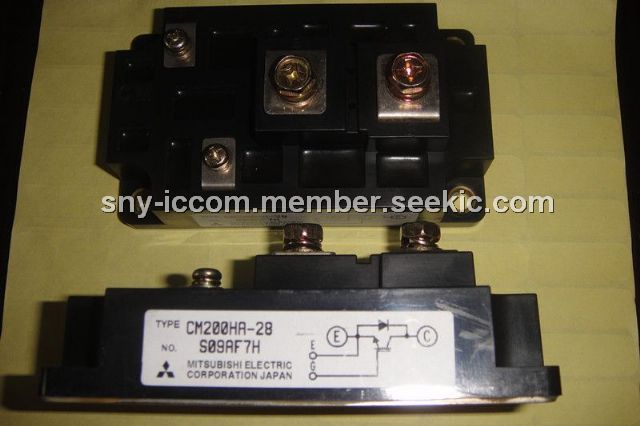

The CM200HA-28 is a 1200V (VCES), 200 Ampere Single IGBT Module. It is designed for use in switching applications. The CM200HA-28 consists of one IGBT in a single configuration with a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

CM200HA-28 absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 200 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 400Amperes; (7)Emitter Current (Tc = 25℃), IE: 200 Amperes; (8)Peak Emitter Current, IEM: 400 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃), Pc: 1500 Watts; (10)Mounting Torque, M6 Main Terminal: 1.96~2.94 Nm; (11)Mounting Torque, M6 Mounting: 1.96~2.94 Nm; (12)Mounting Torque, M4 Terminal: 0.98~1.47 Nm; (13)Weight:400 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

CM200HA-28 features: (1)low drive power; (2)low VCE(sat); (3)discrete super-fast recovery free-wheel diode; (4)high frequency operation; (5)isolated baseplate for easy heat sinking.

Diagrams

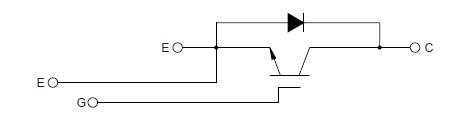

CM200HA-28 circuit diagram
