Product Summary

The FF200R12KT4 is an IGBT module.

Parametrics

FF200R12KT4 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)DC-collector current: 200A; (3)Repetitive peak collector current: 400A; (4)total power dissipation: 1100W; (5)Gate-emitter peak voltage: ±20V.

Features

FF200R12KT4 features: (1)Collector-emitter saturation voltage: 215V; (2)gate threshold voltage: 64V; (3)Gate charge: 180μC; (4)Internal gate resistor: 38Ω; (5)Input capacitance: 140μF.

Diagrams

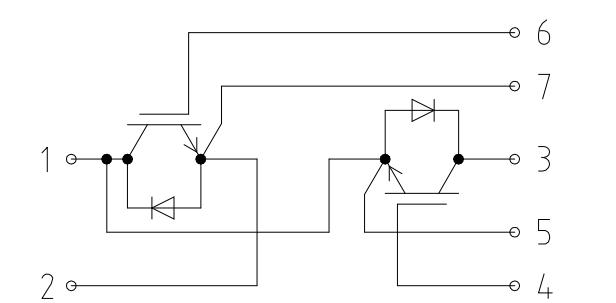

FF200R12KT4 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

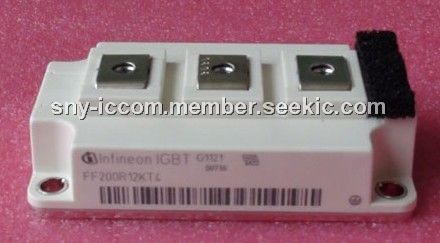

FF200R12KT4
FF200R12KT4
Infineon Technologies
IGBT Modules N-CH 1.2KV 320A
Data Sheet
0-6: $79.84
6-10: $72.58
