Product Summary

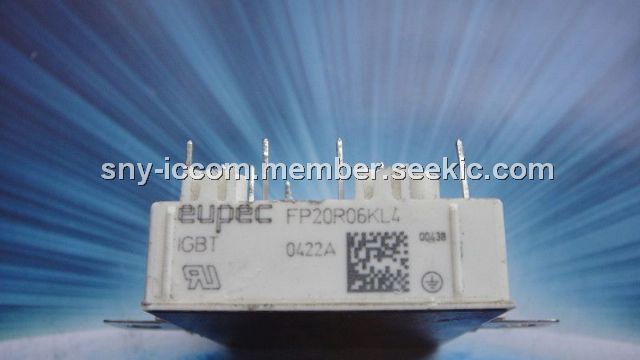

The FP20R06KL4 is an IGBT Module.
Parametrics
FP20R06KL4 absolute maximum ratigns: (1)repetitive peak reverse voltage, Tvj =25℃, VRRM: 800 V; (2)RMS forward current per chip, TC =80℃, IFRMSM: 29 A; (3)maximum RMS current at Rectifier output, TC =80℃C, IRMSmax: 36 A; (4)surge forward current, IFSM: tP = 10 ms, Tvj = 25℃: 262 A; tP = 10 ms, Tvj = 150℃: 215 A; (5)I2t - value, I2t: tP = 10 ms, Tvj = 25℃: 344 A2s; tP = 10 ms, Tvj = 150℃: 231 A2s.
Features
FP20R06KL4 features: (1)internal insulation: Al2O3; (2)CTI, comperative tracking index: 225; (3)mounting force, F: 40 to 80 N; (4)weight, G: 36 g; (5)terminal to heatsink: creeping distance: 13,5 mm; clearance: 12 mm; (6)terminal to terminal: creeping distance: 7,5 mm; clearance: 7,5 mm.

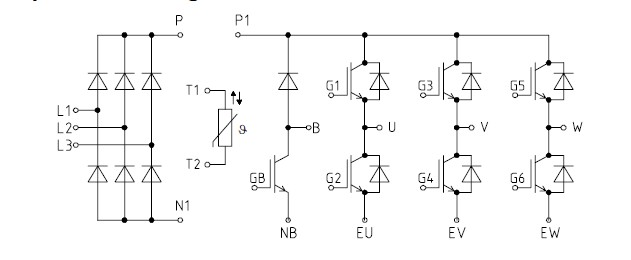

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FP20R06KL4 |
Infineon Technologies |
IGBT Modules 600V 20A EASY MOUNT |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
FP200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
FP2000-LITE |
Elprotronic |
Programmers - Processor Based FlashPro2000 LITE VERSION |
Data Sheet |
|
|
||||||||||||
|
FP2000-STD |
Elprotronic |
Programmers - Processor Based FlashPro2000 STD FOR TI C2000 DSP |
Data Sheet |
|
|
||||||||||||
|
FP201 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |

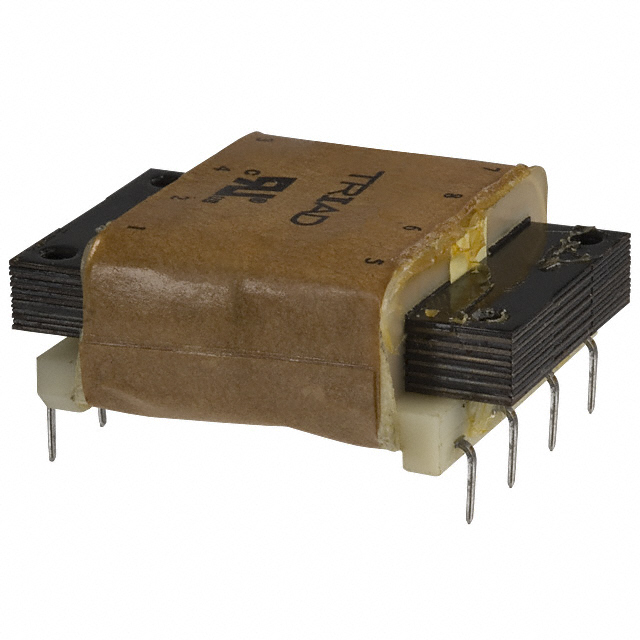

FP20-125 |
