Product Summary

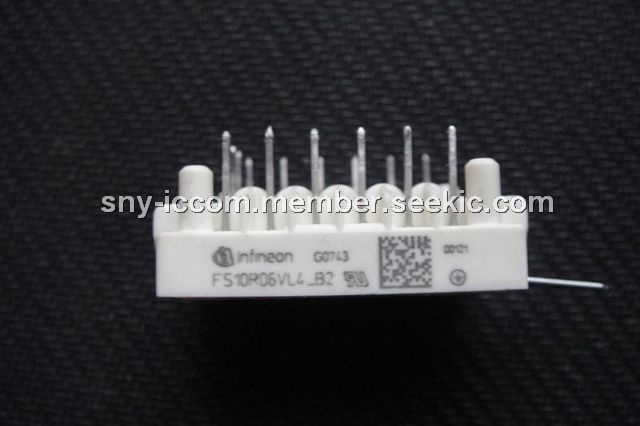

The FS10R06VL4-B2 is an IGBT module.

Parametrics

FS10R06VL4-B2 absolute maximum ratings: (1)collector-emitter voltage:600V; (2)DC-collector current:10 or 16A; (3)repetitive peak collector current:20A; (4)total power dissipation:78W; (5)gate-emitter peak voltage:±20V.

Features

FS10R06VL4-B2 features: (1)repetitive peak reverse voltage:600V; (2)DC forward current:10A; (3)repetitive peak forward current:20A; (4)I2t value:12A2s.

Diagrams

FS10R06VL4-B2 block diagram

FS10-.1
FS10-.1
