Product Summary

The FZ800R16KF4 is an IGBT module.

Parametrics

FZ800R16KF4 absolute maximum rating: (1)Collector-emitter voltage: 1600V; (2)DC-collector current: 800A; (3)Repetitive peak collector current: 1600A; (4)total power dissipation: 6250W; (5)Gate-emitter peak voltage: ±20V; (6)dc forward current: 800A; (7)Insulation test voltage: 34kV.

Features

FZ800R16KF4 features: (1)Collector-emitter saturation voltage: 37V; (2)Gate threshold voltage: 65V; (3)Input capacity: 130nF; (4)collector-emitter cut-off current: 6mA; (5)Gate leakage current: 400nA.

Diagrams

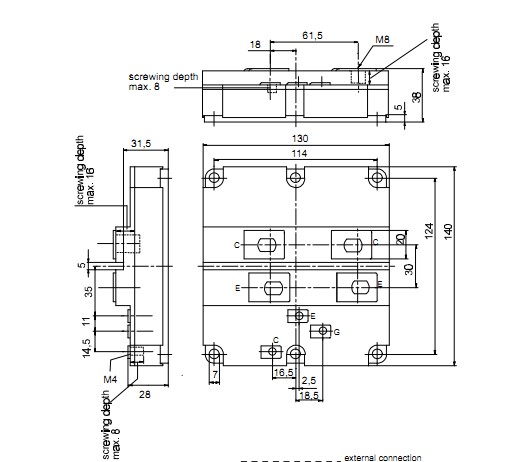

FZ800R16KF4 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZ800R16KF4
FZ800R16KF4

Infineon Technologies

IGBT Modules 1600V 800A SINGLE

Data Sheet

0-2: $462.20
2-3: $416.35
3-5: $370.09
5-10: $346.96
