Product Summary

The SKM195GAL126D is a Trench IGBT Module. The applications of the SKM195GAL126D include AC inverter drivers, UPS, electonic welders.

Parametrics

SKM195GAL126D absolute maximum ratings: (1)VCES, Tc= 25℃: 1200V; (2)Tc= 25(80)℃, Ic: 220(160)A; (3)ICRM, ICRM=2xICnom: 300A; (4)VGES:±20V; (5)Tvj·(Tstg): -40 to +150(125)℃; (6)AC, 1min., Visol: 4000V.

Features

SKM195GAL126D features: (1)Trench=Trenchgate technology; (2)VCE(sat) with positive temperature coefficient; (3)High short circuit capability, self limiting to 6 x IC.

Diagrams

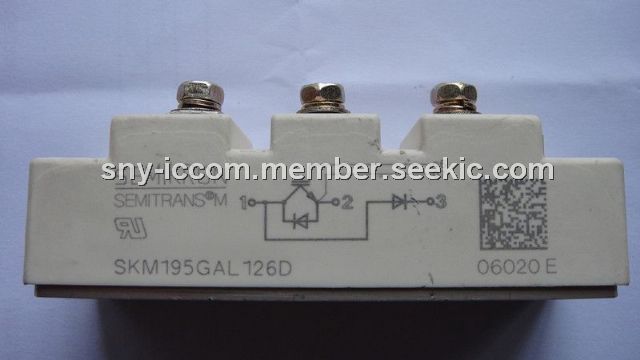

 SKM195GAL126D circuit diagram
