Product Summary

The PC1008 is a diode module.

Parametrics

PC1008 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage : 800V; (2)Non Repetitive Peak Reverse Voltage: 960V; (3)Average Rectified Output Current :100A; (4)RMS Forward Current: 156 A; (5)Surge Forward Current: 2000A; (6)I Squared t *1: 20000A2s; (7)Operating JunctionTemperature Range: -40 to +150 °C; (8)Storage Temperature Range: -40 to +125 °C.

Features

PC1008 features: (1)Isolated Base ; (2)Dual Diodes Cathode Common and Cascaded Circuit ; (3)High Surge Capability ; (4)UL Recognized, File No. E187184.

Diagrams

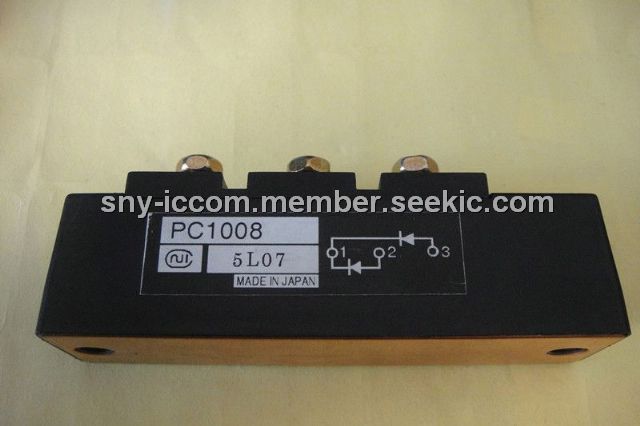

PC1008 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PC1008
PC1008

Other


Data Sheet

Negotiable
