Product Summary

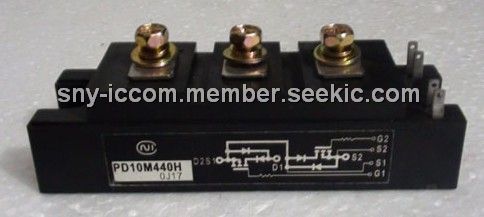

The PD10M440H is a MOSFET module. Its applications include power supply for the communications and the induction heating.
Parametrics
PD10M440H absolute maximum ratings: (1)drain-source voltage: 500V; (2)Gate-source voltage: ±20V; (3)continuous drain current: 85A; (4)pulsed drain current: 170A; (5)total power dissipation: 730W; (6)storage temperature range: -40 to 125℃.
Features
PD10M440H features: (1)Dual MOSFETs cascaded circuit; (2)Prevented body diodes of MOSFETs by SBDs, and ultra fast recovery diodes connected in parallel; (3)300KHz high speed switching possible.

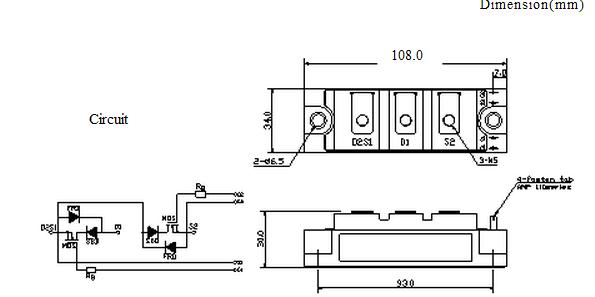

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PD10M440H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
