Product Summary

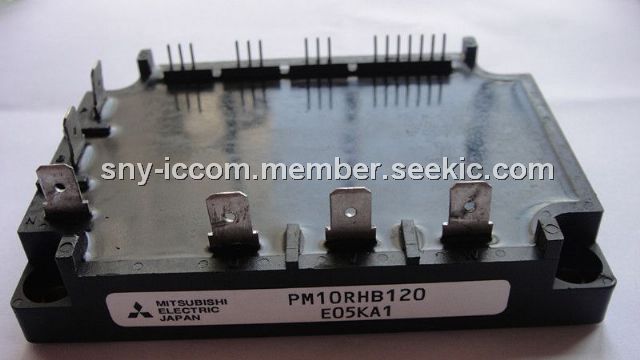

The PM10RHB120 is a three phase brake IGBT inverter.Applications of the PM10RHB120 are inverters, small UPS, motion/servo control, AC motor control.

Parametrics

PM10RHB120 absolute maximum ratings: (1)Power Device Junction Temperature: -20 to+150℃; (2)Storage Temperature: -40 to +125℃; (3)Case Operating Temperature: -20 to+100℃; (4)Mounting Torque, M4 Mounting: 15 Kg-cm; (5)Screws Module Weight (Typical): 330 Grams; (6)Supply Voltage Protected by PC and SC (Vn = 13.5- 16.5V, Inverter Part) Isolation Voltage AC 1 minute, 60Hz: 800 Volts.

Features

PM10RHB120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic; (4)Short Circuit Over-Current Over Temperature Under Voltage.

Diagrams

PM10RHB120 pin connection
