Product Summary

The SKM400GA124D is a low loss IGBT module. The typical application of the SKM400GA124D are: Switching, inverter drives, UPS.

Parametrics

SKM400GA124D maximum ratings: (1)VCES: 1200V; (2)IC TC=25(85)℃: 600(400)A; (3)ICRM, tp=1ms: 600A; (4)VGES: ±20V; (5)Tvj(Tstg), Toperation≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1min: 2500V.

Features

SKM400GA124D features: (1)MOS input; (2)N channel, homgeneous Si-structure; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6x 1; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DBC Direct Copper Bonding Technology; (9)Large clearance and creepage distances.

Diagrams

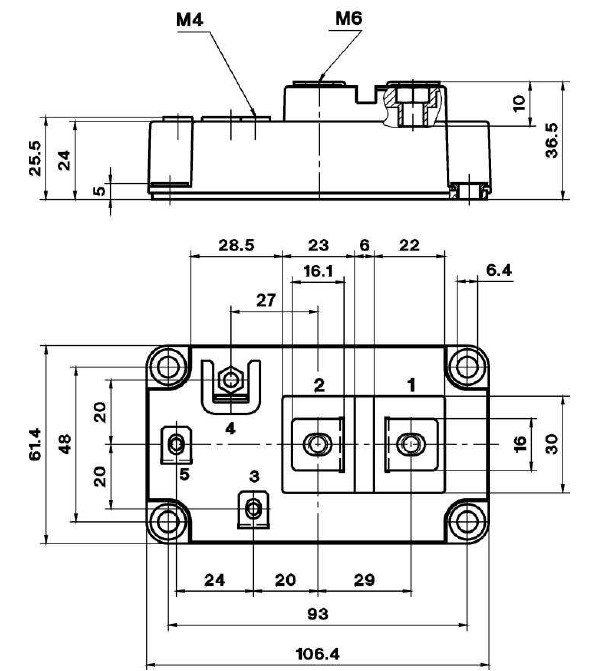

SKM400GA124D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

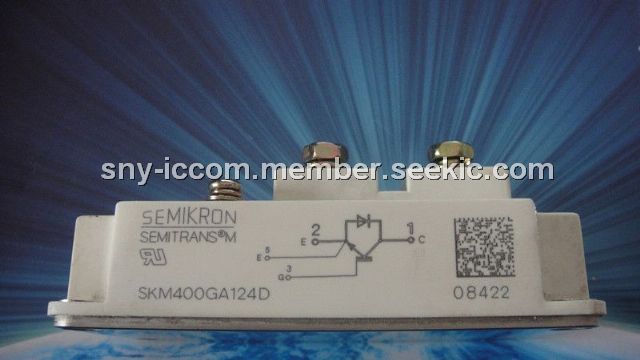

SKM400GA124D
SKM400GA124D

Other


Data Sheet

Negotiable
