Product Summary

The SKM40GD124D is a low loss IGBT module. It is suitable for switched mode power supplies and three phase inverters for AC motor speed control.

Parametrics

SKM40GD124D absolute maximum ratings: (1)VCES: 1200V; (2)Ic when Tc=25℃: 50(40)A; (3)ICRM when tp=1ms: 50A; (4)VGES: ±20V; (5)Tvj(Tstg) when Toperation≤Tstg: -40 to +150℃; (6)Visol when AC, 1min.: 2500V.

Features

SKM40GD124D features: (1)MOS input; (2)N channel, homegeneous si-structure; (3)Low inductance case; (4)Low tail current with low temperature dependence; (5)Latch up free; (6)Fast and soft CAL diodes; (7)Large clearance and creepage distance.

Diagrams

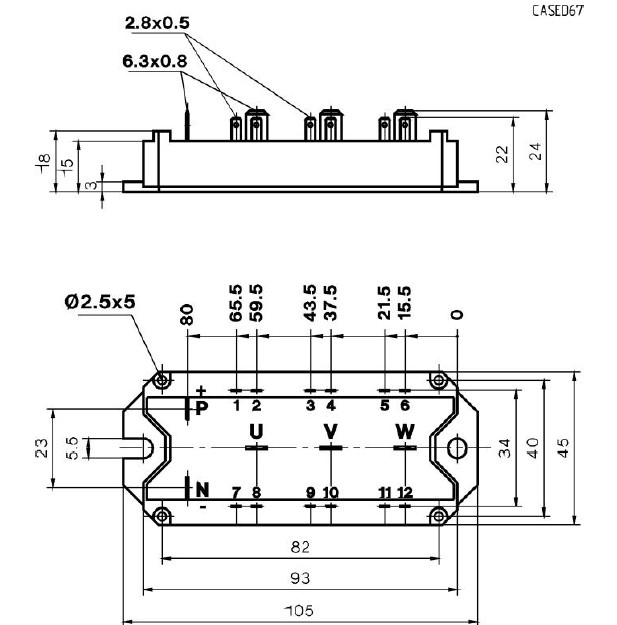

SKM40GD124D dimenisons

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SKM40GD124D
SKM40GD124D

Other


Data Sheet

Negotiable
