Product Summary

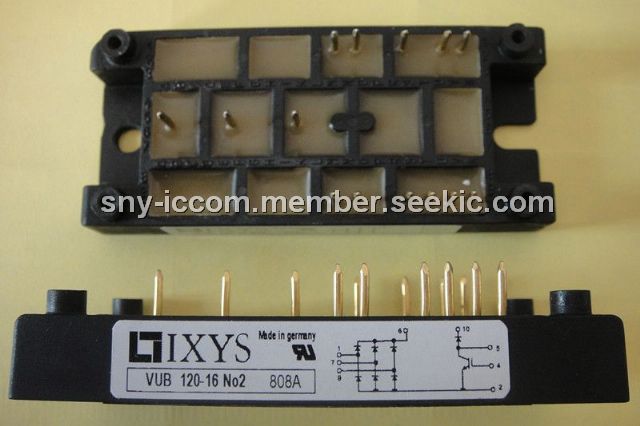

The VUB120-16NO2 is a Three Phase Rectifier Bridge. The applications of the VUB120-16NO2 include Drive Inverters with brake system.
Parametrics
VUB120-16NO2 absolute maximum ratings: (1)VRRM: 1200/1600 V; (2)IdAVM, TC = 80℃, rect., d = 1/3: 188 A; (3)IFSM, TVJ = 45℃, t = 10 ms, VR = 0 V: 1100 A; TVJ = 150℃, t = 10 ms, VR = 0 V: 960 A; (4)I2t, TVJ = 45℃, t = 10 ms, VR = 0 V: 6050 A; TVJ = 150℃, t = 10 ms, VR = 0 V: 4610 A; (5)Ptot, TC = 25℃ per diode: 160 W.
Features
VUB120-16NO2 features: (1)Soldering connections for PCB mounting; (2)Isolation voltage 3600 V~; (3)Ultrafast diode; (4)Convenient package outline UL registered E 72873; (5)Case and potting UL94 V-0.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUB120-16NO2 |
Ixys |
IGBT Modules 120 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
