Product Summary

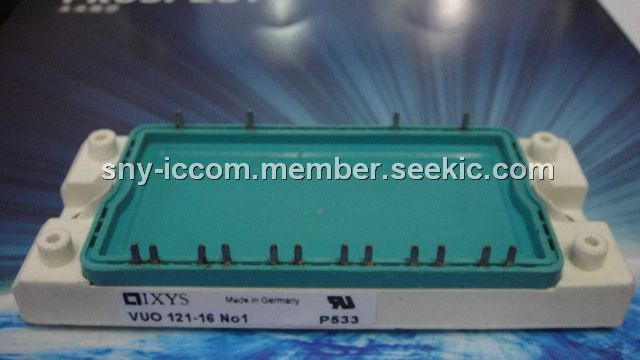

The VUO121016NO1 is a Three Phase Rectifier Bridge. The applications of the device are Diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Parametrics

VUO121016NO1 absolute maximum ratings: (1)storage temperature: -40 to 125°C; (2)virtual junction temperature:-40 to 125°C; (3)RMS current: 200 A; (4)weight:176g; (5)isolation voltage: 3600V.

Features

VUO121016NO1 features: (1)Package with DCB ceramic; (2)Reduced weight; (3)Improved temperature and power cycling; (4)Planar passivated chips; (5)Very low forward voltage drop; (6)Very low leakage current.

Diagrams

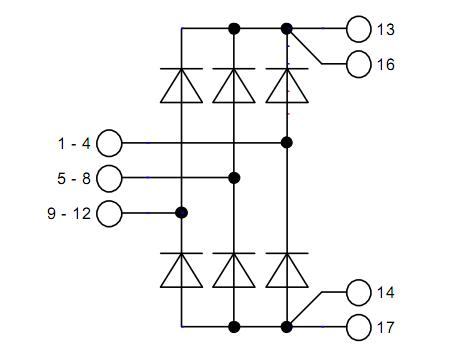

VUO121016NO1 block diagram
