Product Summary

The BSM300GA120DN2 is an IGBT power module.

Parametrics

BSM300GA120DN2 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)Collector-gate voltage: 1200v; (3)gate-emitter voltage: ±20V; (4)DC collector current: 430A; (5)Pulsed collector current: 860A; (6)Power dissipation per IGBT: 2500W.

Features

BSM300GA120DN2 features: (1)Single switch; (2)including fast free-wheeling diodes; (3)package with insulated metal base plate.

Diagrams

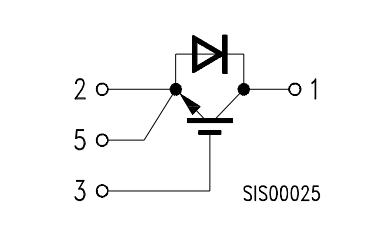

BSM300GA120DN2 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM300GA120DN2
BSM300GA120DN2
Infineon Technologies
IGBT Modules 1200V 300A SINGLE
Data Sheet
0-1: $96.32
1-5: $91.59
5-10: $86.69
10-50: $76.73
BSM300GA120DN2E316
BSM300GA120DN2E316
Other

Data Sheet
Negotiable
BSM300GA120DN2FS_E3256
BSM300GA120DN2FS_E3256
Infineon Technologies
IGBT Modules IGBT POWER MOD 1200v 300A
Data Sheet
0-1: $98.01
BSM300GA120DN2FS
BSM300GA120DN2FS
Infineon Technologies
IGBT Modules IGBT 1200V 300A
Data Sheet
0-6: $90.60
6-10: $81.60
BSM300GA120DN2S
BSM300GA120DN2S
Infineon Technologies
IGBT Modules 1200V 300A SINGLE
Data Sheet
0-6: $96.32
6-10: $86.69
BSM300GA120DN2S E3256
BSM300GA120DN2S E3256
Other

Data Sheet
Negotiable
BSM300GA120DN2S_E3256
BSM300GA120DN2S_E3256
Infineon Technologies
IGBT Modules IGBT 1200V 300A
Data Sheet
0-6: $99.60
6-10: $90.00
BSM300GA120DN2SE3256
BSM300GA120DN2SE3256
Infineon Technologies
IGBT Transistors 1200V 300A SINGLE
Data Sheet
0-6: $99.60
6-10: $90.00
