Product Summary
The CM15MD-12H is an IGBT module. Its applications include AC&DC motor controls, general purpose inverters, servo controls, NC, robotics.
Parametrics
CM15MD-12H absolute maximum ratings: (1)VES, collector-emitter voltage: 600V; (2)VGES, gate-emitter voltage: ±20V; (3)IC: 15A; (4)ICM: 30A; (5)IE: 15A; (6)IEM: 30A; (7)Collector dissipation: 45W.
Features
CM15MD-12H features: (1)IC: 15A; (2)VCES: 600V; (3)insulated type; (4)cib module; (5)UL recognized.

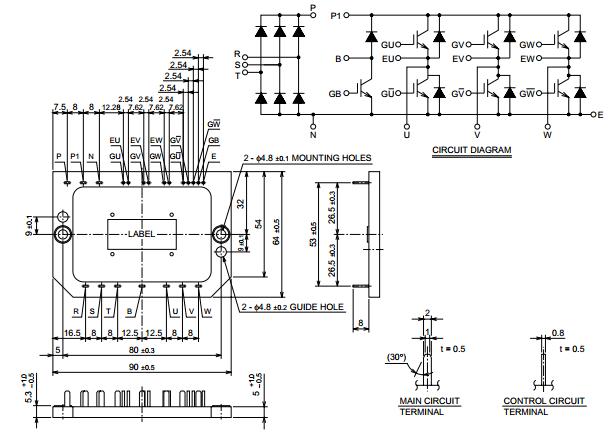

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

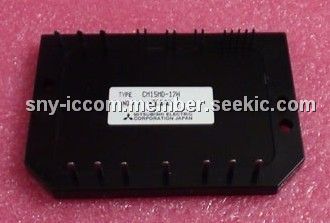

 CM15MD-12H |
Other |
|
Data Sheet |
Negotiable |
|
||||
