Product Summary

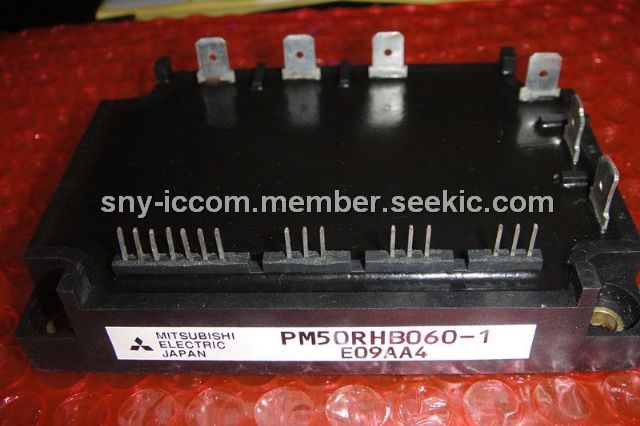

The PM50RHB060-1 is an igbt module. It is designed for applications requiring a high frequency output switching inverter. The PM50RHB060-1 is isolated from the baseplate, consisiting of complete drive, control and protection circuitry for the IGBT inverter. The applications of the PM50RHB060-1 are inverters, small UPS, motion/servo control, AC motor control.
Parametrics
PM50RHB060-1 absolute maximum ratings: (1)junction temperature: -20 to +150°C; (2)storage temperature: -40 to +125°C; (3)case operating temperature:-20 to +100°C; (4)supply voltage:400V; (5)isolation voltage:2500V.
Features
PM50RHB060-1 features: (1)complete output power circuit ; (2)gate drive circuit; (3)protection logic; (4)short circuit; (5)over current; (6)over temperature; (7)under voltage.

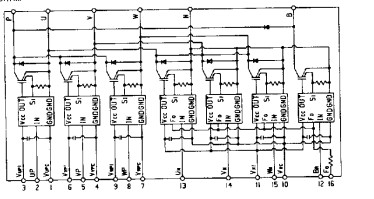

Diagrams
 |
