Product Summary

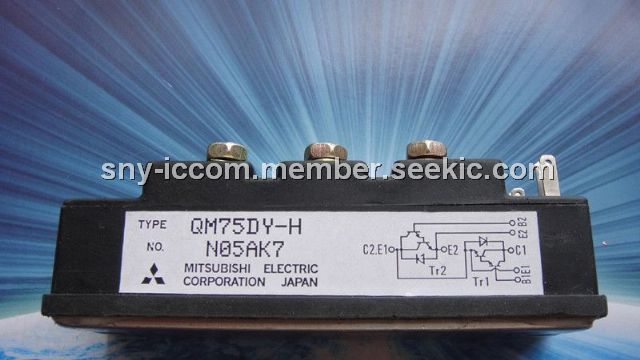

The QM75DY-H is a Mitsubishi transistor module. The applications of QM75DY-H are: Inverters, Servo drives, UPS, DC motor controllers, NC equipment, Welders.
Parametrics
QM75DY-H absolute maximum ratings: (1)VCEX (SUS) Collector-emitter voltage IC=1A, VEB=2V: 600V; (2)VCEX Collector-emitter voltage VEB=2V: 600V; (3)VCBO Collector-base voltage: 600V; (4)VEBO Emitter-base voltage: 7V; (5)IC Collector current: 75A; (6)–IC Collector reverse current: DC(forward diode current): 75A; (7)PC Collector dissipation TC=25℃: 350W; (8)IB Base current DC: 4.5A; (9)–ICSM Surge collector reverse current(forward diode current): 750A; (10)Tj Junction temperature: –40~+150 ℃; (11)Tstg Storage temperature: –40~+125 ℃; (12)Viso Isolation voltage: 2500V.
Features
QM75DY-H features: (1)IC Collector current: 75A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized.

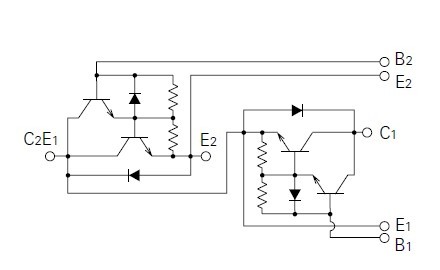

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM75DY-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM75DY-HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
