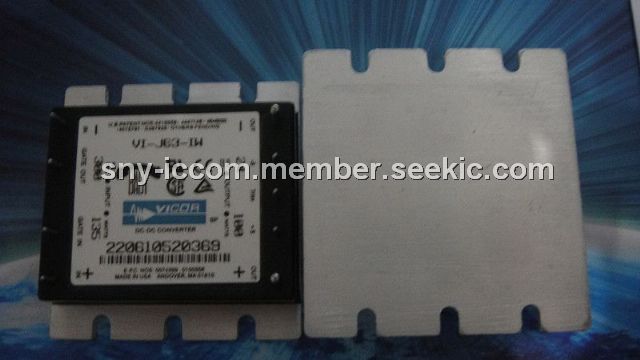

Product Summary

The VI-J63-IW is a DC-DC converter. It establishes a new standard in component-level DC-DC converters. This junior size complement to the higher power VI-J63-IW offers up to 100W of isolated and regulated power in a board mounted package. At one-half the size and twice the power density of previous 100W modules, and with a maximum operating temperature rating of 100℃, the MiniMod opens new horizons for board-mounted (distributed) power architectures.

Parametrics

VI-J63-IW absolute maximum ratings: (1)No load power dissipation: 1.35W; (2)Total remote sense compensation: 0.5V; (3)Gate out impedance: 50Ω; (4)Gate in high threshold: 6V; (5)Gate in low current: 6mA; (6)Input to output: 3000V; (7)Output to baseplate: 500V; (8)Input to baseplate: 1500V; (9)Baseplate to sink: 0.4℃/Watt; (10)Weight: 3.0 (85) Ounces (Grams).

Features

VI-J63-IW features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT; (3)CE Marked; (4)Up to 90% Efficiency; (5)Size: 2.28 x 2.4 x 0.5 (57,9 x 61,0 x 12,7); (6)Remote Sense and Current Limit; (7)Logic Disable; (8)Wide Range Output Adjust; (9)ZCS Power Architecture; (10)Low Noise FM Control.

Diagrams

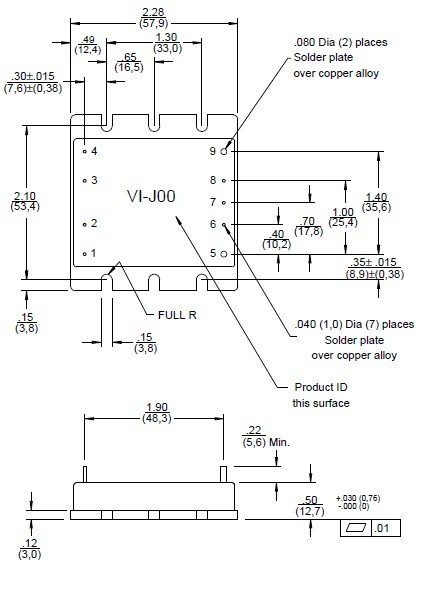

VI-J63-IW Mechanical Drawing
