Product Summary

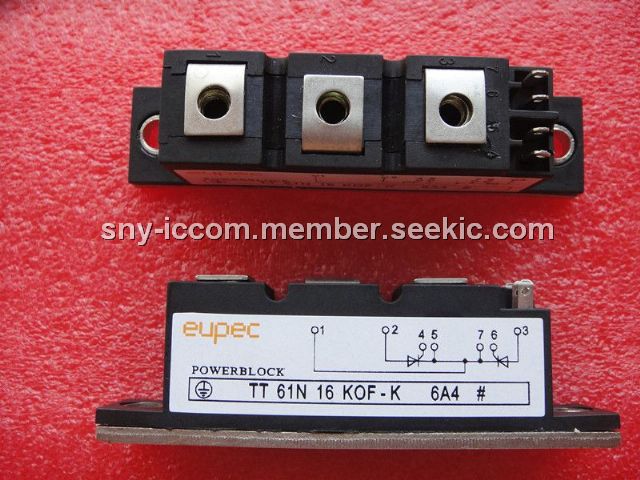

The TT61N10KOF-K is a phase control thyristor module.

Parametrics

TT61N10KOF-K absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages Tvj = -40℃ Tvj max VDRM,VRRM: 1600 V; (2)non-repetitive peak forward off-state voltage Tvj = -40℃: Tvj max VDSM: 1600 V; (3)non-repetitive peak reverse voltage Tvj = +25℃: Tvj max VRSM: 1700 V; (4)maximum RMS on-state current ITRMSM: 120 A; (5)average on-state current TC = 85℃ ITAVM 60 76 A; (6)surge current: Tvj = 25 ℃, tP = 10 ms ITSM 1550A, Tvj = Tvj max, tP = 10 ms ITSM 1400A; (7)I²t-value Tvj = 25 ℃, tP = 10 ms I²t 12000 A²s, Tvj = Tvj max, tP = 10 ms 9800 A²s; (8)critical rate of rise of on-state current DIN IEC 747-6 f = 50 Hz, iGM = 1 A, diG/dt = 1 A/μs (diT/dt)cr: 150 A/μs; (9)critical rate of rise of off-state voltage Tvj = Tvj max, vD = 0,67 VDRM 6.Kennbuchstabe / 6th letter F (dvD/dt)cr: 1000 V/μs.

Features

TT61N10KOF-K features: (1)on-state voltage Tvj = Tvj max , iT = 300 A vT max. 1,9 V; (2)threshold voltage Tvj = Tvj max V(TO)0,8 V; (3)slope resistance Tvj = Tvj max rT 3,4 mΩ; (4)gate trigger current Tvj = 25℃, vD = 6 V IGT max. 120 mA; (5)gate trigger voltage Tvj = 25℃, vD = 6 V VGT max. 1,4 V.

Diagrams

TT61N10KOF-K dimension
